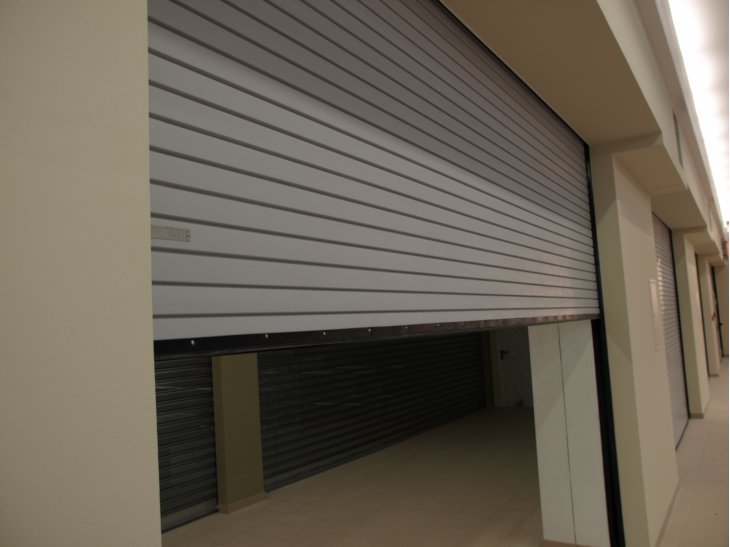

Fire-protection rolling gates of Marc-VR type are designed to separate fire zones in accordance with binding fire regulations.
These gates are used mainly in public buildings, manufacturing plants and halls and in underground garages. They are the ideal solution for places with a limited amount of space around the opening. They may be painted in any RAL colour to adapt the door to almost any operational environment.
Technical Approval:
ITB nr AT-15-7497/2014
Certyficate of Conformity ITB ITB-1703/W
Information cards:
Product card Marc-Vr
Technical card Marc-Vr
Principle of operation
The opening and closing of the gate is carried out by the main motor 400V AC. In case of fire risk, the fire-fighting central unit activates the fire prevention motor of 24V DC integrated with the main drive and the door closes the passage between the fire zones. In case of power failure it is possible to open the door manually using a crank. It is also possible to use a motor powered by 230V.
Construction
- the gate shell consists of fireproof panels;
- each panel is made up of a shaped PVC profile, with two internal wooden slats tightly coated by a fire-resistant insulation material;
- the gate panels are made in standard colour similar to RAL 7035;
- the gate panels are wound on the shaft and mounted between the guides, which typically are not covered by any housing.
Check
Similar products
Technical
parameters
Fire resistance class:
EI30/EI60
Technical Approval:
ITB AT-15-7497/2014
Certificate of Conformity:
1703/14
Dimensions:
The maximum height of EI fire resistance doors is 5,000 mm and the width of 5 500 mm.
The maximum height of EI 60 fire resistance doors is 5,000 mm and the width of 5,000 mm.
